Hybrid Inverter 3 Phase Solar Deye 8kw 10kw 12kw SUN-12K-SG04LP3 240A SUN-10K-SG04 Inverter Sun12ksg04lp3eu

Product Categories

Wall Mounted Lithium Battery [21]
Power Wall Battery [13]
Rack Mounted Lithium Battery [41]
Lifepo4 Lithium Battery [22]
Lead Acid Solar Battery [8]
Hybrid Solar Inverter [39]
Off Grid Solar Inverter [107]
On Grid Solar Inverter [7]
Micro Solar Inverter [21]
Power Inverter [57]
Solar Panel [67]
Solar Energy Systems [56]
Balcony Solar System [11]
UPS Uninterruptible Power Supply [37]
Voltage Regulator Stabilizer [38]

TTN New Energy Technology (Wenzhou) Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

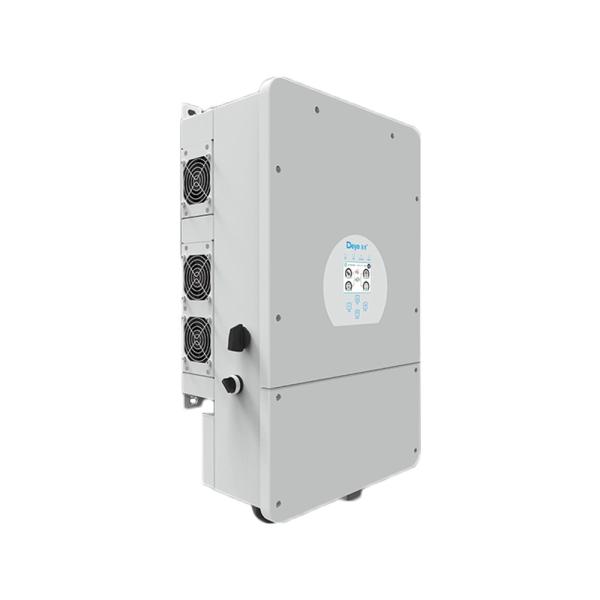

Hybrid Inverter 3 Phase Solar Deye 8kw 10kw 12kw SUN-12K-SG04LP3 240A SUN-10K-SG04 Inverter Sun12ksg04lp3eu

Name: Hybrid Inverter 3 Phase Solar Deye 8kw 10kw 12kw SUN12KSG04LP3 240A SUN10KSG04 Inverter Sun12ksg04lp3eu
Brand: Deye
Price: 1 USD

Hybrid Inverter 3 Phase Solar Deye 8kw 10kw 12kw SUN-12K-SG04LP3 240A SUN-10K-SG04 Inverter Sun12ksg04lp3eu Manufactures

Place of Origin : China

Brand Name : Deye

Model Number : 8-12kw hybrid inverter

Input Voltage : 40-60VDC

Output Voltage : 400VAC

Output Current : 12-18A

Output Frequency : 50/60HZ

Output Type : Triple

Size : 422 x 658 x 281mm

Type : DC/AC Inverters

Inverter Efficiency : 97.6%

Certificate : CE

Warranty : 5 years

Weight : 36.8kg

Application : Home Solar Power System

Waveform : Puer Sine Wave

Battery type : Lead-acid, lithium

AC connection : Three phases

Color : Grey

MPPT : 2 MPPTs

Display : LCD Display

Product name : MPPT Hybrid Solar Inverter

Inverter type : Hybrid Solar Power Inverter

Keyword : Deye Solar Energy Power Inverter

Packaging Details : Standard and protect well carton or wooden box with pallet

Port : shanghai or any china port

Supply Ability : 1000 Piece/Pieces per Month

MOQ : 10 pieces

Price : $1,837.00 - $2,243.00/pieces

Contact Now

Products Description

Deye Hybrid Inverter

An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

Deye hybrid inverters include single phase 3-16kW and three-phase 8-12kW, For the SUN-3K-SG04LP1-24-EU, it uses 24V battery bank and the rest of them adopts 48V battery. Also, the SUN-16K-SG01LP1-EU is the max single phase hybrid inverter on the global market.

The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the
connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.

Hybrid Inverter 3 Phase Solar Deye 8kw 10kw 12kw SUN-12K-SG04LP3 240A SUN-10K-SG04 Inverter Sun12ksg04lp3eu

SUN-5/6/8/10/12K-SG04LP3 | 5-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

Higher yields / Safe & Reliable / Smart / User-friendly

SUN 5/6/8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.

* 48V low voltage battery, transformer isolation design
* 6 time periods for battery charging/discharging
* Max. charging/discharging current of 240A
* Max.10pcs parallel
* DC couple and AC couple to retrofit existing solar system
* Support storing energy from diesel generator
* Supports three phase unbalanced output
* Unique Smart Load application and Grid peak shaving function

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

Model	SUN-5K-SG04LP3-EU	SUN-6K-SG04LP3-EU	SUN-8K-SG04LP3-EU	SUN-10K-SG04LP3-EU	SUN-12K-SG04LP3-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40~60V
Max. Charging Current (A)	120A	150A	190A	210A	240A
Max. Discharging Current (A)	120A	150A	190A	210A	240A
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Yes
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
