Deye SUN-12K-SG04LP3 Hybrid 3 Phase 12kw 10kw 8kw Inverter Price

Name: Deye SUN12KSG04LP3 Hybrid 3 Phase 12kw 10kw 8kw Inverter Price
Brand: Deye
Price: 2 USD

Deye SUN-12K-SG04LP3 Hybrid 3 Phase 12kw 10kw 8kw Inverter Price Manufactures

Place of Origin : China

Brand Name : Deye

Model Number : Deye-8KW/10K/12K--3

Input Voltage : 550V

Output Voltage : 220V/230V/400V

Output Current : 12A~18A

Output Frequency : 50Hz/60Hz Auto

Output Type : Triple, Single

Size : 422Wx658Hx281D

Type : DC/AC Inverters

Inverter Efficiency : 97.6%

Certificate : IEC/UTE/ EN/IEC/VDE

Warranty : 5 years

Weight : 36.8kg

Product name : Hybrid Solar Inverter

DC Connnection : Pv connector

DC Switch : yes

Protective class : Class I

Ingress protection : IP65

Grid monitoring : yes

Strings monitoring : yes

Display : LED App

Cooling : Natural

Packaging Details : One off grid solar inverter in one carton box

Port : Shanghai or Ningbo Port

Supply Ability : 1000 Piece/Pieces per Month

MOQ : 10 pieces

Price : $2,015.00 - $2,243.00/pieces

Contact Now

Products Description

Deye Hybrid Inverter

An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

Deye hybrid inverters include single phase 3-16kW and three-phase 8-12kW, For the SUN-3K-SG04LP1-24-EU, it uses 24V battery bank and the rest of them adopts 48V battery. Also, the SUN-16K-SG01LP1-EU is the max single phase hybrid inverter on the global market.

The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the
connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.

Deye SUN-12K-SG04LP3 Hybrid 3 Phase 12kw 10kw 8kw Inverter Price

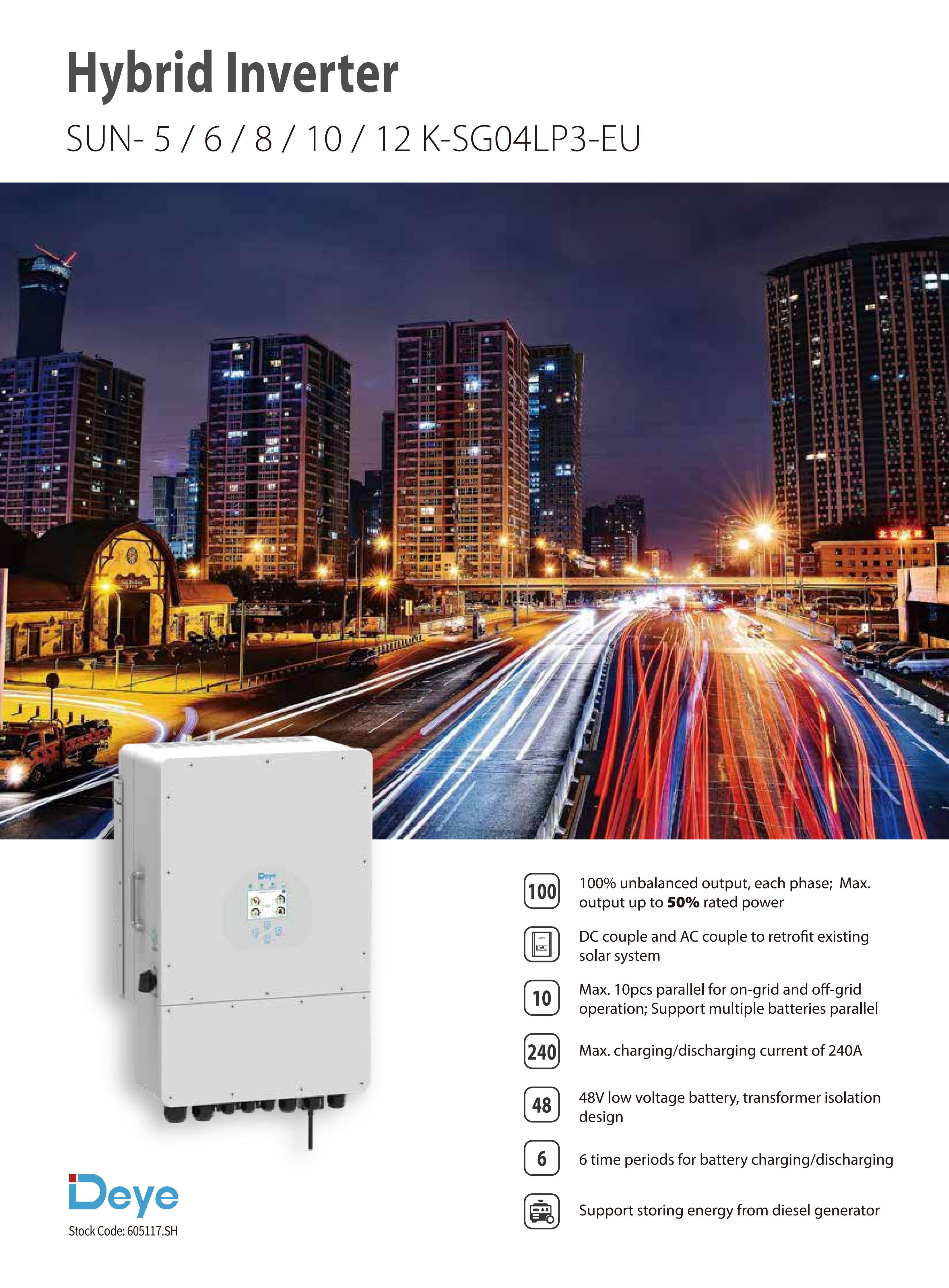

SUN-5/6/8/10/12K-SG04LP3 | 5-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

Higher yields / Safe & Reliable / Smart / User-friendly

SUN 5/6/8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.

* 48V low voltage battery, transformer isolation design
* 6 time periods for battery charging/discharging
* Max. charging/discharging current of 240A
* Max.10pcs parallel
* DC couple and AC couple to retrofit existing solar system
* Support storing energy from diesel generator
* Supports three phase unbalanced output
* Unique Smart Load application and Grid peak shaving function

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

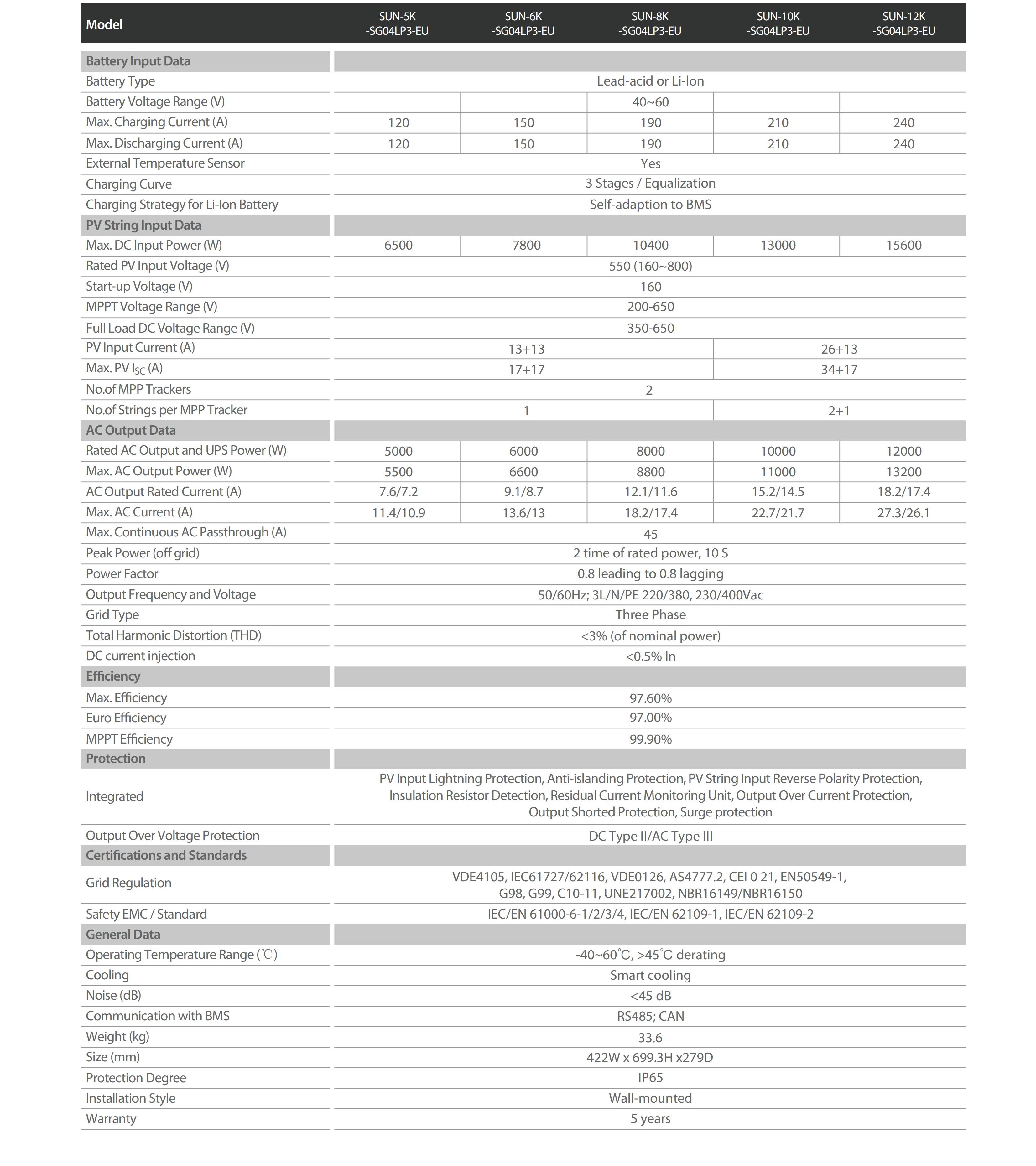

Model	SUN-5K-SG04LP3-EU	SUN-6K-SG04LP3-EU	SUN-8K-SG04LP3-EU	SUN-10K-SG04LP3-EU	SUN-12K-SG04LP3-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40~60V
Max. Charging Current (A)	120A	150A	190A	210A	240A
Max. Discharging Current (A)	120A	150A	190A	210A	240A
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Yes
Charging Strategy for Li-Ion Battery	Self-adaption to BMS

Product Details

Projects

Product packaging

Company Profile

Deye SUN-12K-SG04LP3 Hybrid 3 Phase 12kw 10kw 8kw Inverter Price Images
