Hybrid Inverter DEYE Brand 8kw 6kw 5kw In Stock 5 Years Warranty For Solar Energy Storage System

Name: Hybrid Inverter DEYE Brand 8kw 6kw 5kw In Stock 5 Years Warranty For Solar Energy Storage System
Brand: DEYE
Price: 1 USD

Place of Origin : China

Brand Name : DEYE

Model Number : SUN-8K-SG01LP1-EU

Input Voltage : AC220V

Output Voltage : 125-425V

Output Current : 24-35A

Output Frequency : 50/60Hz

Output Type : Single

Size : 420*670*233mm

Type : DC/AC Inverters

Inverter Efficiency : 97.6%

Certificate : CE;EMC;IVD

Warranty : 5 YEARS

Weight : 32

Packaging Details : Deye Three Phase Hybrid Inverter 8KW 10KW 12KW Solar Inverter with Battery
1. Individual box packaging
2. Large quantities can be packed in wooden pallets or cartons
3. Packaging can be customized according to customer needs

Port : shanghai

Supply Ability : 1000 Piece/Pieces per Month

MOQ : 10 sets

Price : $1,665.00/sets

Contact Now

Products Description

Deye Hybrid Inverter

An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

Deye hybrid inverters include single phase 3-16kW and three-phase 8-12kW, For the SUN-3K-SG04LP1-24-EU, it uses 24V battery bank and the rest of them adopts 48V battery. Also, the SUN-16K-SG01LP1-EU is the max single phase hybrid inverter on the global market.

The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the
connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.

SUN-5/6K-SG01LP1-US SUN-7.6/8K-SG01LP1-US/EU | 5-8KW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

Higher yields / Safe & Reliable / Smart / User-friendly

The series, SUN-5/6K-SG01LP1-US SUN-7.6/8K-SG01LP1-US/EU, is a single-phase low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes self-consumption through export limit feature and “time of use” function. With the frequency droop control algorithm, this series product supports single phase and three phase parallel application, and the Max. parallel units is up to 16pcs.

* Colorful touch LCD, IP65 protection degree
* 6 time periods for battery charging/discharging
* Max. charging/discharging current of 190A
* Max.16pcs parallel
* DC couple and AC couple to retrofit existing solar system
* Support storing energy from diesel generator
* Max. battery charge efficiency of 95.4%
* Unique Smart Load application and Grid peak shaving function
* 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
* Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.

Remotely shutdown function

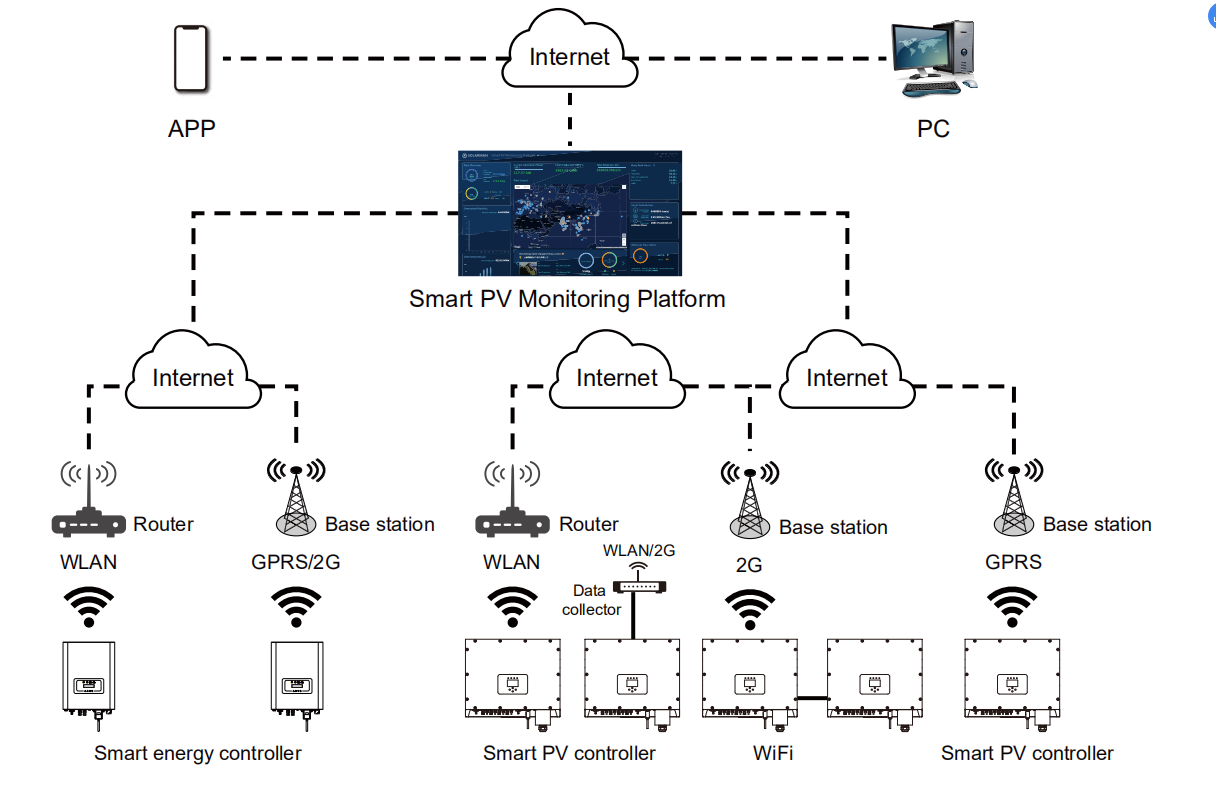

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

Model	SUN-5K- SG01LP1-US	SUN-6K- SG01LP1-US	SUN-7.6K- SG01LP1-US/EU	SUN-8K- SG01LP1-US/EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40~60V
Max. Charging Current (A)	120A	135A	190A	190A
Max. Discharging Current (A)	120A	135A	190A	190A
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Yes
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	6500W	7800W	9880W	10400W
Rated PV Input Voltage (V)	370V(125V～500V）
Start-up Voltage (V)	125V
MPPT Range (V)	150V-425V
Full Load DC Voltage Range (V)	300V-425V	200V-425V
PV Input Current (A)	13A+13A	26A+13A	26A+26A
Max. PV ISC (A)	22A+22A	44A+22A	44A+44A
Number of MPPT Trackers	2
Number of Strings per MPPT Tracker	1	2+1	2

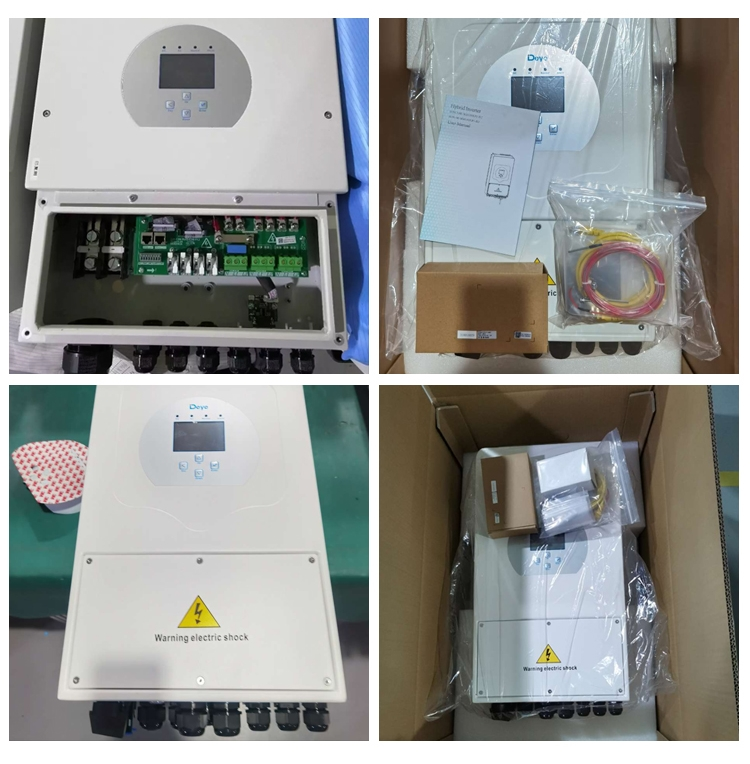

Product Details

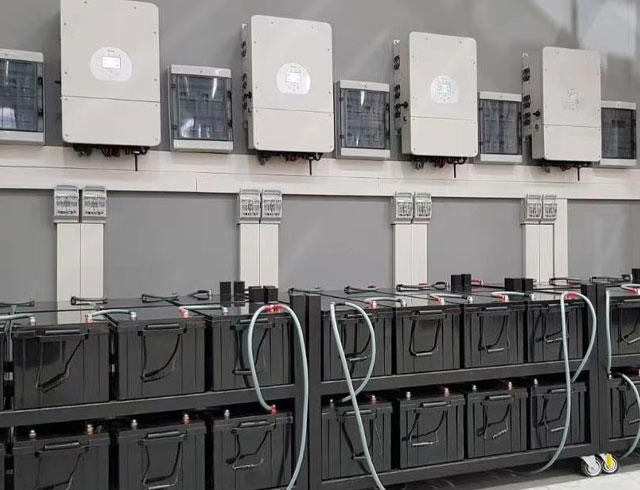

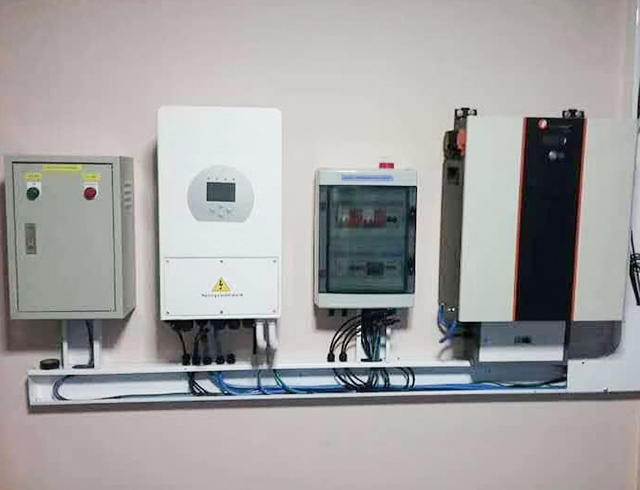

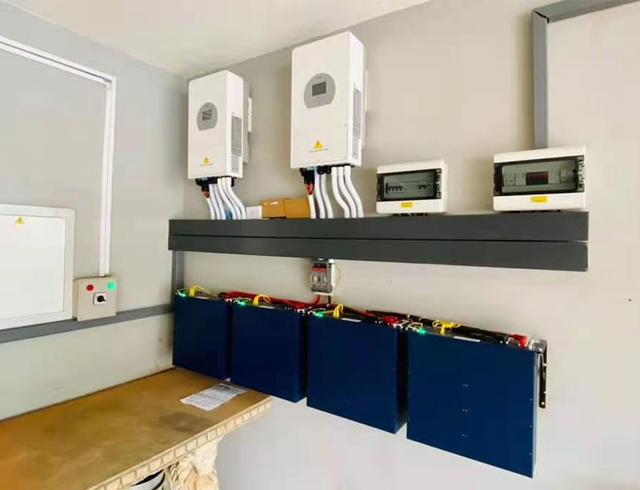

Projects

Product packaging

Company Profile

Hybrid Inverter DEYE Brand 8kw 6kw 5kw In Stock 5 Years Warranty For Solar Energy Storage System Images
